Polar Alignment Guide for Motorized Telescope Mounts

Introduction: Why Polar Alignment Matters

Polar alignment is one of the most critical steps in setting up a motorized telescope mount for astrophotography or visual astronomy. A properly aligned mount ensures accurate tracking of celestial objects, reducing drift and minimizing field rotation, which is essential for long-exposure imaging. Without proper alignment, objects will drift out of view, even with tracking enabled, and astrophotography images will suffer from star trails instead of pinpoint stars. The exact method of polar alignment varies depending on the mount manufacturer and its control system. This guide covers the alignment process for ZWO, iOptron, Celestron, and Sky-Watcher motorized mounts, including harmonic and equatorial types.

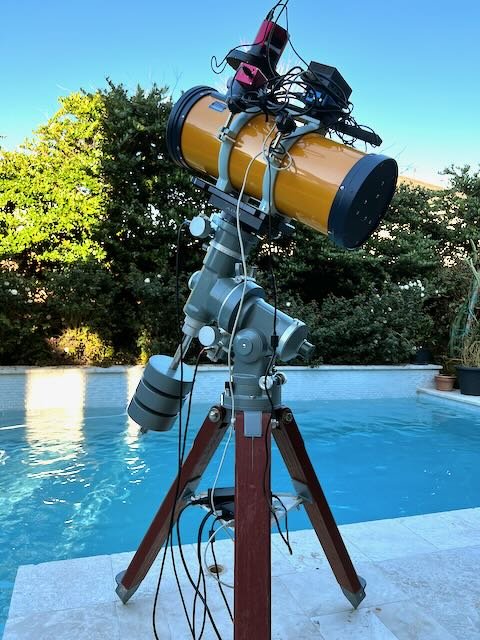

General Preparation Steps

Regardless of the mount type, follow these initial steps before beginning the polar alignment process:

  1. Setup and Leveling:

    • Assemble your mount and place it on stable ground.

    • Level the tripod using a built-in bubble level or an external spirit level.

  2. Initial Positioning:

    • Point the polar axis (Right Ascension axis) toward the North Celestial Pole (NCP) in the Northern Hemisphere or the South Celestial Pole (SCP) in the Southern Hemisphere.

    • Set the mount to its "Home" or "Zero" position (usually with the counterweight bar pointing downward and the telescope aimed near the celestial pole).

Manufacturer-Specific Alignment Procedures

1. ZWO Mounts (AM5, AM3, and ASIAIR Integration)

ZWO mounts often rely on the ASIAIR system for polar alignment, streamlining the process through plate-solving and digital adjustments.

  • ASIAIR Polar Alignment:

    1. Connect Equipment: Ensure your ASIAIR device is connected to the mount, camera, and power supply.

    2. Launch ASIAIR App: Open the ASIAIR app on your tablet or smartphone and connect to your ASIAIR device.

    3. Access Polar Alignment Feature: Navigate to the "Polar Alignment" section within the app.

    4. Follow On-Screen Instructions: The app will guide you through rotating the mount and making altitude and azimuth adjustments to align with the celestial pole.

2. iOptron Mounts (GEM28, CEM26, CEM70, and HEM27)

iOptron mounts feature multiple alignment methods, including the "Two-Star Polar Align" and "Polar Iterate Align."

  • Two-Star Polar Align:

    1. Access Alignment Menu: Press the MENU button on the hand controller, select "Alignment," then choose "Two-Star Polar Align."

    2. Select First Star: Pick a bright star near the meridian and allow the mount to slew to it. Center the star in the eyepiece using the arrow keys and press ENTER to confirm.

    3. Select Second Star: Choose a second bright star near the horizon. Center it and press ENTER to confirm.

    4. Review Alignment Error: The hand controller will display altitude and azimuth errors, which you can correct using the mount’s adjustment bolts.

3. Celestron Mounts (Advanced VX, CGX, CGX-L, and CGEM Series)

Celestron offers multiple polar alignment methods, including the built-in All-Star Polar Alignment (ASPA) feature.

  • All-Star Polar Alignment (ASPA) Method:

    1. Perform a Rough Polar Alignment: Use a polar scope or compass to roughly align the mount.

    2. Align to a Bright Star: Complete a standard two-star alignment via the hand controller.

    3. Enter ASPA Mode: In the hand controller menu, navigate to “Align” and select “Polar Align.”

    4. Adjust the Mount: The mount will slew to the selected star. Use the mount’s altitude and azimuth knobs to center it rather than the hand controller.

    5. Finalize and Confirm: Press ENTER once the star is centered, and the mount will save the new polar alignment data.

4. Sky-Watcher Mounts (EQ6-R Pro, EQ8-R, and Star Adventurer GTi)

Sky-Watcher mounts support multiple methods, including the traditional polar scope method and SynScan-assisted alignment.

  • SynScan Polar Alignment:

    1. Perform a Rough Alignment: Use a polar scope or an app like “SynScan Pro” to roughly align the mount.

    2. Go-To a Star: Select a bright star and allow the mount to slew to it.

    3. Adjust the Mount: Use the mount’s altitude and azimuth knobs (not the hand controller) to center the star in the eyepiece.

    4. Confirm and Save Alignment: Finalize the alignment via the SynScan hand controller or app.

Conclusion

Proper polar alignment is essential for maximizing the tracking accuracy of your motorized telescope mount, ensuring smoother long-exposure astrophotography and stable visual observation. While each manufacturer provides different tools and methods, the key principles remain the same—align the Right Ascension axis with the celestial pole using a combination of star alignment, software guidance, and manual adjustments. Mastering this process will significantly enhance your astrophotography results and overall experience.
